31 January 2010

OpsMgr SMS Notification with SysMan Integration - Part 2

In my earlier post, I have shared on how to configure networking settings into our Serial-over-IP device. In this post, I will share on how to map your device into a Serial Port (COM) within your OpsMgr server.

The first thing that we need to is to install the NPort Administration Suite into your OpsMgr server. Once that is complete; you can easily launch the NPort Administrator console

From the OpsMgr server, go to Start -> All Programs -> NPort Administration Suite -> NPort Administrator to launch the administration console.

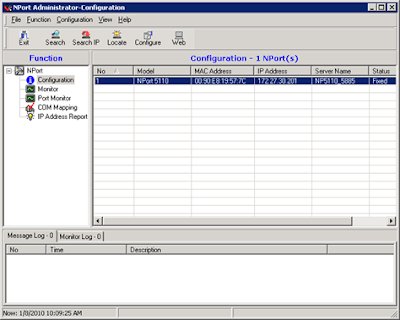

In the NPort Administrator console, click NPort -> Configuration node and click Search IP

In the Add NPort popup, enter the IP Address of your NPort device which you have configured earlier and click OK

The device will now be listed in the NPort Administrator console

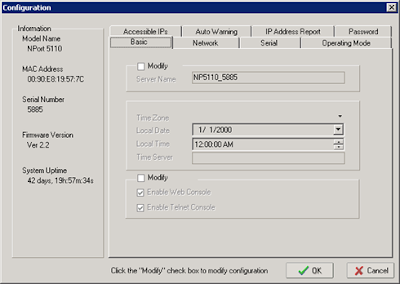

Double click on the device if you want to configure the device

Click on NPort -> COM Mapping on the Function pane and select Configure to configure mapping of your OpsMgr server Serial Port to the device

In the COM Port Settings window, select a valid COM port that you wish to map the device and click OK to proceed

Now we have the device being mapped to a Serial Port (COM) in your OpsMgr server; you can easily verify the configuration by running AT commands to access the GSM device that is connected to the Serial-Over-IP device.

In my next posting, I will share on how we can use SysMan SMS notification gateway to integrate with OpsMgr to send out SMS notification to administrators.
